Correlation

Correlation analysis is used to determine the strength and direction of the linear relationship between two variables, X and Y.

In TSE Analytics, the results are displayed as a scatter plot of all data pairs, along with individual density plots or histograms for each variable. Pearson's correlation coefficient is then calculated to quantify the strength and direction of this relationship. T-test statistics are used to assess the statistical significance of the correlation coefficient. Correlation analysis helps researchers identify significant associations between variables, guiding the further interpretation of experimental data.

Figure: Correlation widget

Correlation plots

Data pairs for each time bin are depicted as dots in the scatter plot and are dependent on the selected variables, groups and time binning settings.

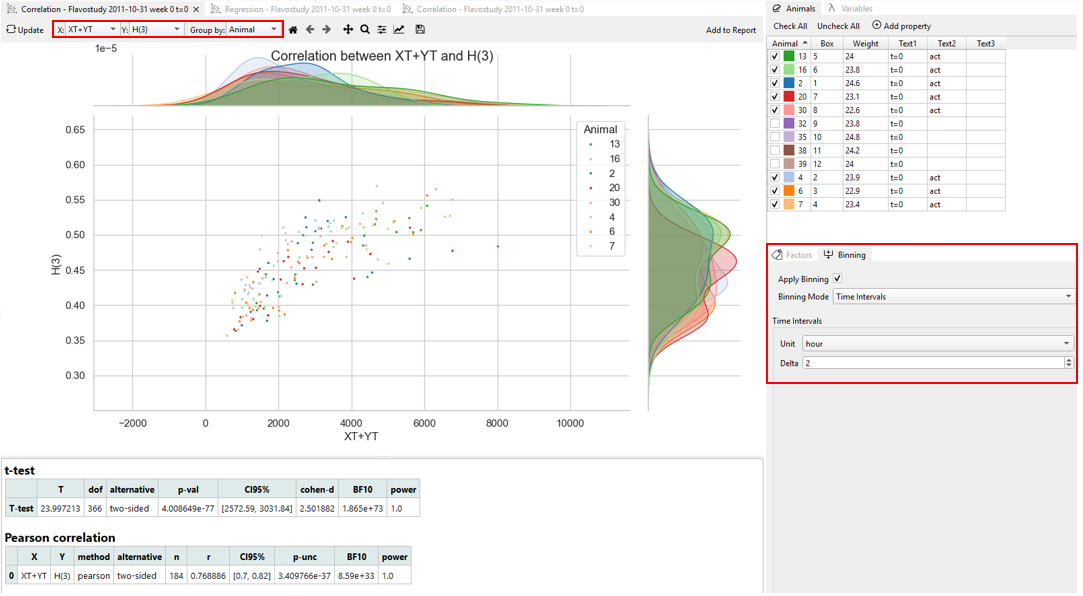

Figure: Correlation plot

Histograms/ Density plots represent how frequently different values occur for each variable. The plots are drawn along the axis corresponding to the variable, and the way the data is grouped and time-binned is taken into account.

Note

Histograms are only shown when the data is grouped by “Total.” If the data is split into subsets (for example, by Animal or Factor), histograms are not used. Instead, a separate density curve is drawn for each subset.

To adjust the appearance of a plot, use the ‘Customize’ tool (‘Graph’ symbol) in the plot menu and select the respective plot from the drop-down menu (“[Variable X] – [Variable Y]” for scatter plot and “[Variable X] – Count/Density” or “Count/Density – [Variable Y]” for density plots/ histograms).

  • The title, as well as range, label and scale of axis and plot legend generation of individual plots can be defined in the Axes tab of the Customize tool.

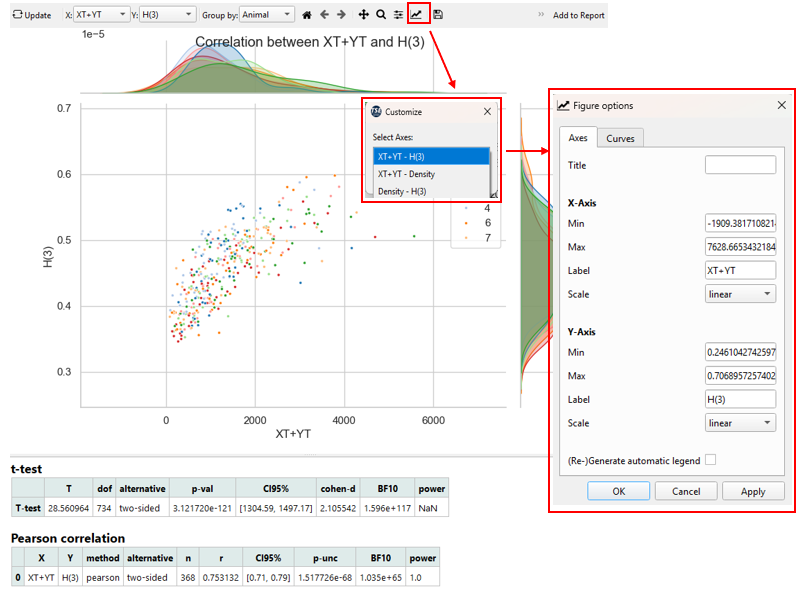

  • In the case of multiple animals, runs or groups (for split modes By Animal, By Run or By Factor, respectively), the appearance of each data subset can be adjusted individually in the Curves tab of the ‘Customize’ tool by selecting the respective subset form the upper dropdown menu.

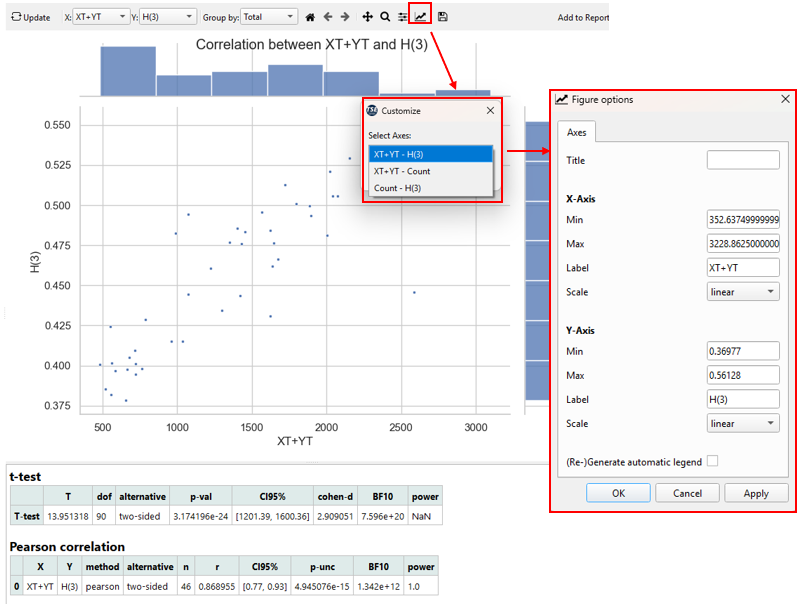

Figure: Axes tab of the customize tool

Curve tab of the customized tool

Correlation results table

Correlation analysis results are calculated based on the (mean) data values per time bin depending on the respective split mode.

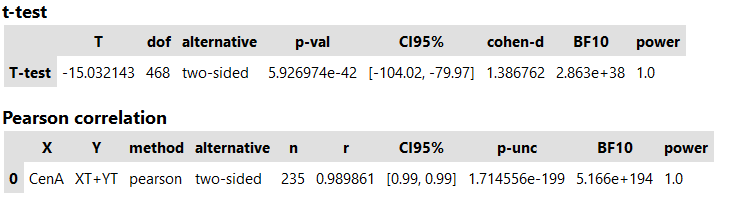

Figure: Correlation analysis results table

The T-test statistics comparing the X and Y variable include (from left to right):

  • T: T-value
  • dof: Degrees of freedom
  • alternative: Tail of the test (two-sided)
  • p-val: p-value
  • CI95%: Confidence intervals of the difference in means
  • cohen-d: Cohen d effect size
  • BF10: Bayes factor of the alternative hypothesis
  • power: Achieved power of the test (= 1 - type II error)

The Pearson correlation coefficient table indicates (from left to right):

  • X: Selected X variable
  • Y: Selected Y variable
  • method: Method of correlation analysis (pearson)
  • alternative: Tail of the test (two-sided)
  • n: Sample size (number of data pairs)
  • r: Correlation coefficient
  • CI95%: 95% parametric confidence intervals
  • p-unc: Uncorrected p-value
  • BF10: Bayes factor of the alternative hypothesis
  • power: Achieved power of the test (= 1 - type II error)

Example Interpretation

The figure below shows the correlation between XT+YT (sum of X and Y beam interruptions, representing locomotor activity) and H(3) (heat production) measured by the PhenoMaster system.

Figure: Correlation analysis example

In this plot:

  • Each dot represents one data pair (XT+YT and H(3)) averaged over a 2-hour time bin.

  • Different colors correspond to individual animals.

  • The x-axis shows the XT+YT values (activity).

  • The y-axis shows the H(3) values (heat production).

  • The density plots along the axes display the value distributions for each variable and animal group.

The T-test yielded a very large t-value (t = 23.99) with an extremely small p-value (p = 4.0 × 10⁻⁷⁷), well below conventional significance threshold(p < 0.001). The high effect size (Cohen’s d = 2.50) and full statistical power indicate that the observed difference is highly significant and unlikely to result from random variation.

Pearson correlation analysis confirmed a strong linear association between activity and heat production (r = 0.77, 95% CI [0.70, 0.82]), supported by robust Bayesian evidence (BF10 ≫ 1) and a sufficient sample size.

These results demonstrate that more active mice produce more heat, reflecting increased metabolic energy expenditure during movement, consistent with the expected physiological relationship between activity and metabolism.
